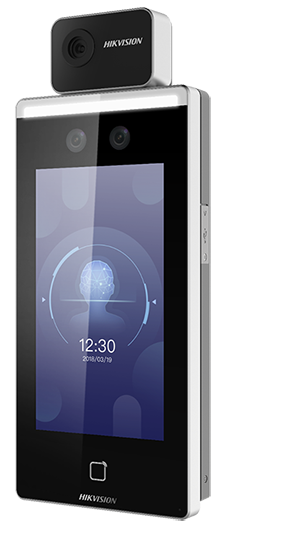

Facial Recognition Access Terminal with Temperature Screening
DS-K1TA70MI-T face recognition terminal is a kind of access control device integrated with temperature screening function. It can fast taking skin-surface temperature and upload abnormal temperature event to the center, which can be widely applied in multiple scenarios, such as enterprises, stations, dwellings, factories, schools, campus and so on.
Key Features: » Supports Vanadium Oxide uncooled sensor to measure target's temperature. » Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: 0.1 ° C, deviation: ± 0.5 °C » Recognition distance: 0.3 to 1.8 m » Fast temperature measurement mode: Detects face and takes temperature without identity authentication » Multiple authentication modes are available: card and temperature, face and temperature, card and face and temperature, etc » Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid » Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed » Displays temperature measurement results on the authentication page » Triggers voice prompt when detecting abnormal temperature » Configurable door status (open/close) when detecting abnormal temperature |
Facial Recognition Access Terminal with Temperature Screening Specification |
| Temperature Range | 30 °C to 45 °C (86 °F to 113 °F) | ||
| Sensor | Vanadium Oxide uncooled sensor | ||
| Resolution | 120 x 160 | ||
| Frame Rate | 25fps | ||
| Measurement Accuracy | 0.1 °C | ||
| Measurement Deviation | ± 0.5 °C | ||
| Measuring Distance | 0.3 to 1.8m | ||
| Screen | 7-inch | ||
| Type | Touch screen | ||
| Pixel | 2MP | ||
| Wired network | Support, 10/100/1000 Mbps self-adaptive | ||
| Card capacity | 6000 | ||
| Face capacity | 6000 | ||
| Event capacity | 100,000 |
|
|
|
|
