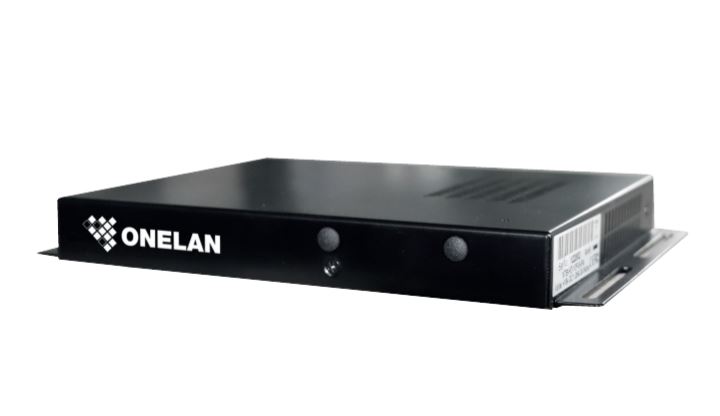

OneLan HD10F Media Player




  • ONELAN NTB-HD-10F is Onelan's ultra slim profile player for use in subscriber
         networks. Ideal for cost sensitive and space restricted applications, for example in
         Retail and Hospitality.




  • OneLan HD10F Media Player Specification

    Product Specifications
    Processor Memory
    Intel: Intel Celeron RAM: 4 GB
    Disc: 64GB Solid-State Drive (SSD)
    Video Audio
    HDMI, VGA (DV-I with adaptors) 3.5 mm stereo mini-jack socket and HDMI
    Media Media Sources
    Video:H.265, MPEG-1, MPEG-2, MPEG-4 (ASP and AVC), QuickTime®, WMV 9, video cropping.
    Animation:HTML (with JavaScript), HTML cropping and zoom, HTML
    Images: JPEG, TIFF, GIF, PNG, BMP
    Audio: MPEG-1 (layers 1, 2 and 3), MPEG-2 (AAC), MPEG-4 (AAC), WMA Loselesses, WMA V1-3, AC3, MP3, WAV
    Text: Multiple fonts, speeds, colours and directions. RSS newsfeed.
    Clocks: Digital (multilingual and localisable date and time formats)
    Internet: HTML (web pages), RSS feeds (with multilingual support), XML files
    Network: Optional IP video stream in License, MPEG/ UDP
    Network Other Ports
    Ethernet: 10/100/1000Base-T (RJ45)
    Wireless: Optional internal PCIe card supporting 802.11 a, b, g, and n (2.4 and 5 GHz)
    USB: 2 x USB 3.0
    RS-232: Optional USB to RS-232 adapter
    Physical
    Dimension: 168(W) x 149(D) x 24(H)mm
    Weight: 1123g (including PSU and mains cable)
    Power: 24.5W (typical consumption) supplied by 65 W external 19 V DC PSU
    Temperature: 0 - 40┬░C Cooling: Active (Fanned)
    Mounting: Optional screen mounting plate (NTB-PlATE)
