KanexPro 4K HDBaseT™100 Meter HDMI® Extender w/ 2-Port Ethernet Switch
MPN: HDBASE100ME


  • The KanexPro HDBASE100ME is a 4K compliant transmitter - receiver set that
         enables you to routes ultra high.

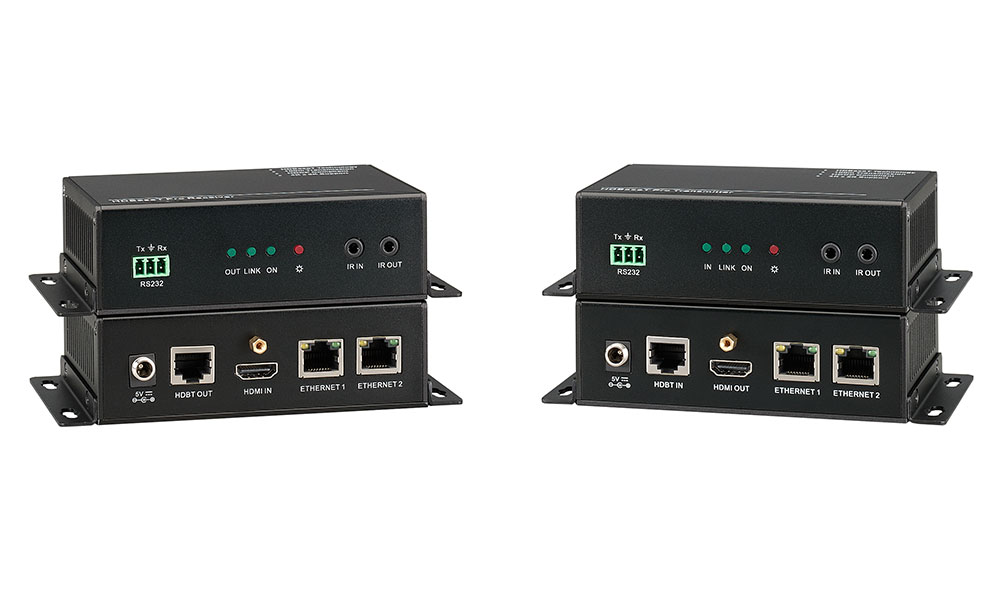

  • This extender also features two Ethernet ports on both the units, which can be
         used to connect standard network devices.

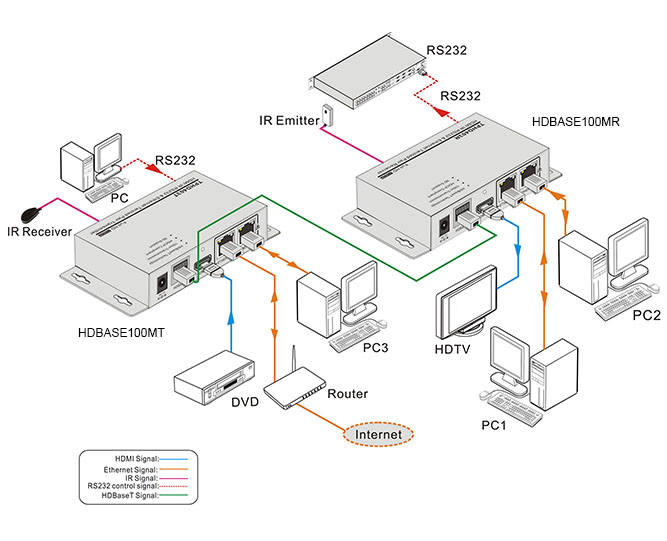

  • Ideally used with Apple TV’s, Blu-ray players, game consoles, satellite boxes and
         HDMI based computers that require extension up to 330 feet connected to an
         HDTV or projector.





  • KanexPro 4K HDBaseT™100 Meter HDMI® Extender w/ 2-Port Ethernet Switch Features


  • Extend uncompressed HDMI signals up to 330 ft. (100m) on single CAT6 cable

  • Integrates 2-Ethernet ports for network devices

  • Supports resolutions from 1080p/60@48bit

  • Supports resolutions of Ultra HD 4K@60Hz

  • Bandwidth up to 10.2 Gbps

  • HDCP, CEC and EDID compliant

  • Infrared Signal Input/Output, embedded over extension

  • Audio support: Dolby TrueHD & DTS Master Audio

  • Uncompressed audio support such as LPCM

  • RS-232 Control

  • Front panel-LEDs for link activity and HDCP authentication

  • Locking HDMI connectors to avoid dis-engagement & signal loss

  • Locking power connector

  • Light aluminum case with separate mounting ears
